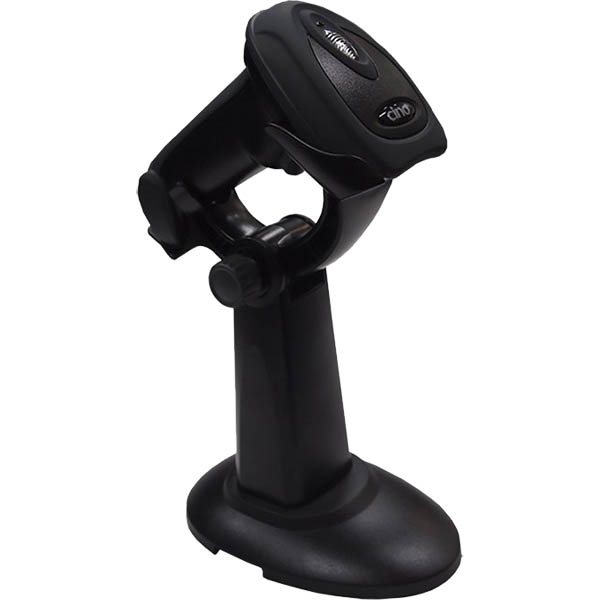

CINO F-780 LINEAR BARCODE IMAGING SCANNER WITH STAND BLACK

Code: 7043814   Brand: CINO   Colour: BLACK
Stock Status:
Delivery (2-5 Days)
  • The all new FuzzyScan FBC-780 series Long Range Linear Imager has set up a new standard as the best cost-performance solution for aim and shoot data capture applications. Equipped with the innovative DynaTrack (patent pending) system , the F780 automatically capture the best possible bar code image through intensive controls amongst the illumination, image capture and the image processing systems
  • Solid State Linear Imager Technology, No moving parts!
  • Rugged and compact design
  • Supports GS1 DataBar
  • Bright Sharp Aiming Line
  • Fast Decoding Rate
  • Optical and Audible Read Confirmation
  • Exceptional Read Performance
  • Manual, Presentation Mode or Auto Trigger
  • Universal interface
  • Reads Degraded and damaged bar-codes
  • Powerful, Flexible Architecture
  • Embedded outstanding DataWizard to meet most of the data editing requirements
  • Symbologies supported: Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked.

$212.73

$234.00 Inc GST

EACH

Add
Features
  • Scan Engine: High Performance Linear Imaging Engine
  • Light Source: 630 nm visible red LED
  • Scan Pattern: Single Line
  • Scan Rate: Dynamic scanning rate up to 500 scans/sec
  • Contrast Ratio: 20% minimum reflective difference
  • Resolution: Minimum 3 mil (Code 39, PCS 0.9)
  • Depth of field: More then 60 cm on 100% UPC/EAN symbols, More then 86 cm on 20 mil code 39
  • Pitch Angle: +/- 65 deg
  • Skew Angle: +/- 65 deg
  • Ambient Light Immunity: 0 to 100000 Lux
  • Symbologies supported: Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked
  • Programming Method: Bar code command, Windows Utility - Fuzzyscan Powertool, Condensed Data Wizard via bar code command, Full featured Data Wizard via Fuzzyscan Powertool
  • Indicators/Controls: 3 LED's for Power, good read, and Status Indicators
  • Programmable Beeper: Optional Vibrator (Special Order with MOQ)
  • Operating Modes: Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation
  • Communication Type: Corded
  • Interfaces: PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation
  • Supply Voltage: 5 VDC
  • Power Consumption: Operating: Typical 180 mA at 5VDC, Standby: Typical 80 mA at 5VDC
  • Drop Specification: Withstands 50 drops at 1.8 m to concrete, Withstands 10 drops at 2 m to concrete
  • Environmental Sealing: IP41
  • ESD Protection: Functional after 15kV discharge
  • Operating Environment: -10 to 50C, RH 5% to 95% non condensing
  • Storage Environment: -40 to 70C, RH 5% to 95% non condensing
  • EMC/Safety Standards: FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE), Taiwan EMC (BSMI), LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
  • External Dimensions: 70.5(w) x 97.8(d) x 156.2(h)mm
  • Weight: 157g (excluding the cable)
  • Colour: Black
  • Warranty: 24 months
  • OEM: FBC780BKITU
